Top-Rated Fuel Level Sensors and Sending Units for Marine and Automotive Use
Maintaining an accurate fuel reading is essential for any marine vessel or automotive project. When selecting a replacement fuel level sending unit or gauge, compatibility with your existing dashboard instrumentation is the most critical factor. Resistance ranges, such as the common 240-33 ohm standard, must align with your gauge to ensure precise measurement. Whether you are replacing a faulty sensor in a boat tank or upgrading a system with a dedicated gauge, understanding the specific mounting patterns and length requirements is necessary for a successful installation. This guide evaluates several top-rated options, ranging from stainless steel universal senders to specialized reed switch units, to help you identify the correct component for your specific fuel tank configuration and resistance needs.
Selecting the right hardware requires balancing sensor length, resistance output, and build quality. For marine environments, stainless steel construction is often preferred for its durability against potential corrosion. Gauge compatibility is equally vital, as mixing different manufacturers can lead to inaccurate fuel level reporting. The following product comparisons focus on essential specifications like ohm ranges, mounting patterns, and length dimensions to help you make an informed decision. By ensuring your sender and gauge are matched correctly, you can rely on consistent data for your vehicle or boat, preventing fuel-related issues during operation. Review these technical specifications to find the reliable monitoring equipment best suited for your workshop or maintenance tasks.
1. 240-33 ohms 8"(200mm) Fuel Level Sending Unit for Marine Boat Truck Car | Fuel Tank Sender Sensor, Stainless Steel Water Fuel Gauge Replacement, 5 Hole
This 8-inch (200mm) sending unit is designed for versatility, compatible with marine, truck, and automotive fuel tanks. It utilizes the standard 240-33 ohm resistance range, making it a suitable replacement for many common fuel gauge systems. The unit features a 5-hole mounting pattern, which is a widely recognized industry standard for secure installation on various tank types. Constructed with stainless steel, the component is intended for use in environments where water or fuel exposure is expected. Its design focuses on providing a direct replacement for existing sensors that may have failed or require an upgrade to maintain accurate level readings. The 200mm length is specifically tailored for tanks that accommodate this depth, ensuring the float arm functions properly within the fuel reservoir to relay accurate data to the connected gauge.
Best for: Standard 5-hole tank mounting configurations
Check on AmazonHighlights
- Compatible with 240-33 ohm gauges
- Durable stainless steel construction
- Industry-standard 5-hole mount
- Suitable for marine and automotive use
Keep in mind
- Limited to 200mm depth applications
- Compatibility depends on matching existing gauge resistance
2. 226-801-015-001G Marine Fuel Level Sensor Single Station W/Seal Kit 432-12/24v - 3-180 Ohm - 150-160mm Length
The 226-801-015-001G is a precision-engineered marine fuel level sensor designed for single-station setups. It operates within a 3-180 ohm resistance range and is compatible with both 12v and 24v electrical systems, offering flexibility for different marine power configurations. With a physical length between 150mm and 160mm, this unit is intended for specific tank depths. The package includes a seal kit, which is a critical inclusion for maintaining a leak-proof installation in marine fuel tanks. This sensor is built to meet the rigorous demands of marine environments, providing a reliable electrical signal to compatible instrumentation. Its technical specifications suggest it is designed for users who require an exact match for their current marine gauge system, emphasizing secure sealing and precise electrical resistance output.
Best for: Marine single-station fuel monitoring
Check on AmazonHighlights
- Includes essential seal kit
- Supports 12v and 24v systems
- 3-180 ohm resistance range
- Designed for marine-grade reliability
Keep in mind
- Specific ohm range requires compatible gauge
- Length is fixed to a narrow 150-160mm range
3. 226007 Fuel Tank Sender and Gasket, 240-33 Ohm Resistance
The 226007 fuel tank sender is a straightforward replacement part engineered for systems requiring a 240-33 ohm resistance output. This sender is supplied with an included gasket, facilitating a proper seal against the fuel tank surface during installation. By adhering to the common 240-33 ohm standard, it is compatible with a wide array of aftermarket fuel gauges. The design prioritizes ease of installation and functional accuracy, making it a practical choice for routine maintenance or repair of automotive and marine fuel level systems. Because it focuses on the essential mechanics of resistance-based level sensing, it serves as a reliable component for restoring fuel gauge functionality. Users should verify their tank's depth and mounting hardware compatibility to ensure this specific sender functions correctly within their existing setup.
Best for: Standard 240-33 ohm fuel gauge replacement
Check on AmazonHighlights
- Includes gasket for installation
- Reliable 240-33 ohm resistance
- Simplified design for easy replacement
- Compatible with various aftermarket gauges
Keep in mind
- Requires verification of tank depth
- Basic feature set may lack advanced sensors

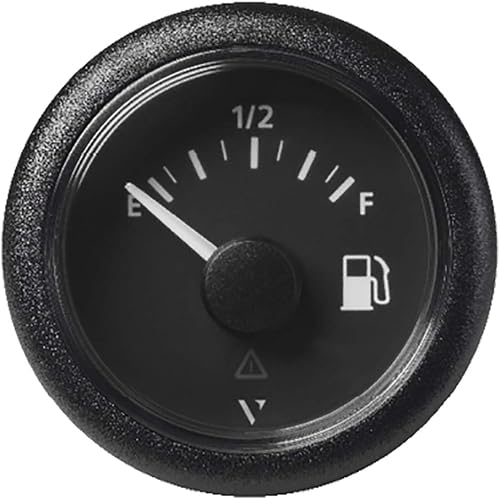

4. VDO Marine 2-1/16" (52MM) VIEWLINE Fuel Level Gauge
The VDO Marine Viewline fuel level gauge is a 2-1/16 inch (52mm) instrument designed for clear, accurate monitoring of fuel levels in marine environments. As a dedicated gauge, it provides the visual interface necessary to interpret the signals sent from a compatible fuel level sender. The Viewline series is known for its marine-grade construction, intended to withstand the moisture and vibration common in boating applications. This gauge is designed to be flush-mounted in a dashboard, offering a clean, integrated look while providing constant fuel level feedback. It is an essential component for operators who need a reliable visual reference for their fuel status, and it pairs effectively with standard resistance-based sending units to complete an efficient monitoring system. Proper electrical integration is required for optimal performance.
Best for: Marine dashboard fuel level monitoring
Check on AmazonHighlights
- Standard 2-1/16 inch (52mm) size
- Viewline series marine-grade build
- Designed for flush dashboard mounting
- High user rating for performance
Keep in mind
- Gauge only; requires a matching sender
- Requires specific dashboard cutout space
5. 226-635 Reed Switch Fuel Sender 350MM 240-33 Ohm
This 350mm reed switch fuel sender is built for deeper tanks that require a longer reach to accurately measure fuel levels. It operates on the 240-33 ohm resistance standard, ensuring compatibility with a broad range of fuel gauges commonly found in marine and heavy-duty automotive applications. The reed switch technology is often utilized for its longevity and consistent performance in liquid environments, as it minimizes mechanical wear compared to traditional float arms. With a length of 350mm, this unit is specifically suited for larger tank dimensions. It provides a stable signal to ensure the fuel gauge remains accurate as the fluid level changes. Users should confirm that their tank depth accommodates this 350mm length and that their gauge is calibrated for the 240-33 ohm signal range.
Best for: Deeper fuel tanks requiring 350mm length
Check on AmazonHighlights
- Durable reed switch technology
- Standard 240-33 ohm signal output
- Ideal for larger tank dimensions
- Consistent performance for deep reservoirs
Keep in mind
- Excessive length for shallow tanks
- Requires specific gauge resistance match
How to choose
Resistance Range Compatibility
The resistance range is the most critical factor when selecting a fuel level sensor. The 240-33 ohm range is a common standard for many marine and automotive gauges, including the 226007 Fuel Tank Sender and the 8-inch stainless steel unit. Before purchasing, verify that your existing fuel gauge is calibrated to interpret these specific resistance values. Mismatched resistance ranges will lead to inaccurate fuel level readings. Always cross-reference the output of the sender with the input requirements of your dashboard gauge to ensure they are electrically compatible for reliable monitoring.
Sender Length and Tank Depth
Fuel senders must be sized correctly to match the depth of your fuel tank. Options range from the 150-160mm length found in the 226-801-015-001G model to the 350mm length of the 226-635 Reed Switch Sender. Choosing a unit that is too short will result in an incomplete reading of the fuel level, while one that is too long will not fit inside the tank. Measure your tank’s interior depth accurately and select a sender that allows for proper clearance while reaching near the bottom for maximum usable fuel tracking.
Construction Materials
Durability in marine and automotive environments often depends on material selection. Stainless steel units, such as the 8-inch 240-33 ohm sensor, are designed for corrosion resistance, which is vital when the component is submerged in fuel or exposed to moisture. Assessing the build quality ensures longevity in demanding conditions. When comparing options, look for specifications that highlight stainless steel construction, as these are typically better suited for harsh environments compared to standard components that may be more susceptible to degradation over time.
Mounting Configuration
Installation requires a standardized mounting pattern, such as the 5-hole design featured on several fuel tank sender units. This configuration is standard for many marine and automotive applications, providing a secure, leak-resistant seal when paired with the correct gasket. Confirm that your tank’s mounting flange matches the 5-hole pattern to avoid modifications. Using the included seal kit or ensuring a high-quality gasket is present during installation is essential for maintaining a vapor-tight seal, which is critical for safety and preventing fuel leaks.
Gauge Integration
A fuel level sensor works in tandem with a gauge, such as the VDO Marine 2-1/16-inch Viewline Fuel Level Gauge. While the sensor provides the data, the gauge must be capable of displaying that information clearly. When building a monitoring system, ensure the gauge diameter fits your dashboard space and is compatible with the ohm range of your chosen sender. Integrated systems often perform most reliably when components are matched for voltage and signal type, ensuring consistent performance across the entire monitoring circuit.
Frequently asked questions
Does a 240-33 ohm sensor work with all fuel gauges?
No, a 240-33 ohm sensor only works with fuel gauges specifically calibrated to read that resistance range. If your gauge uses a different ohm range, such as 3-180 ohms, the readings will be inaccurate. Always check your gauge's technical specifications before purchasing a sender to ensure the resistance values align, preventing incorrect fuel level displays.
How do I choose the correct length for a fuel sender?
You must measure the depth of your fuel tank from the mounting surface to the bottom. The sensor length should be slightly shorter than the tank depth to ensure it fits properly without hitting the bottom, which could damage the unit or cause inaccurate readings. For example, if you have a deep tank, the 350mm 226-635 Reed Switch Sender may be an appropriate choice.
What is the purpose of a reed switch in a fuel sender?
A reed switch, found in models like the 226-635, is a specific type of sensor mechanism used to detect the position of a float. It provides a reliable method for transmitting fuel level data based on the float's position as fuel is consumed. These switches are often chosen for their durability and consistent performance in various fuel tank environments.
Are these sensors suitable for both marine and automotive use?
Many of the listed sensors, such as the 240-33 ohm 8-inch unit, are designed for versatility across marine, boat, truck, and car applications. However, you should always review the specific product description to ensure it meets the environmental requirements of your vehicle or vessel, particularly regarding corrosion resistance and electrical voltage compatibility.
What should I do if my sender does not include a gasket?
A proper gasket is essential for creating a secure, leak-proof seal between the sender and the fuel tank. If your chosen sender does not come with a seal kit or gasket, you will need to source a compatible one that matches the 5-hole mounting pattern of your tank. Never install a fuel sender without a proper seal, as this poses a significant safety risk.
Bottom line
When selecting the strongest fit for a fuel monitoring system, the VDO Marine 2-1/16" Viewline Fuel Level Gauge stands out as a reliable display solution when paired with a compatible sender. For the sensor itself, the 226-635 Reed Switch Fuel Sender offers a robust 350mm length for deeper tanks, while the 240-33 ohm 8-inch stainless steel sender provides an excellent balance of durability and standard resistance for general marine and automotive needs. The 226-801-015-001G remains a top-rated choice for specific 3-180 ohm requirements. Ultimately, the best setup relies on matching the sender's ohm output precisely to the gauge's input, ensuring that the chosen hardware—whether a reed switch or stainless steel sender—fits the physical dimensions of your specific tank.
Deciding on the right fuel level sensor requires a three-step assessment: verify your gauge's resistance range, measure your tank's interior depth, and confirm the mounting pattern. Start by identifying the required ohm range (e.g., 240-33 or 3-180) to ensure signal compatibility. Next, select a sensor length that allows for full travel within your tank without bottoming out. Finally, confirm that your tank flange accommodates the 5-hole mounting design common to these units. By prioritizing these technical specifications over general compatibility, you ensure a safe and accurate fuel level monitoring system for your boat or vehicle.
