Top-Rated Battery Spot Welders for DIY Battery Pack Repair and Assembly
Building or repairing battery packs requires precision equipment designed for spot welding nickel strips. Choosing the right tool depends on your specific project needs, such as the required power output, portability, and control interface. Whether you are a hobbyist working on small-scale DIY electronics or managing more frequent battery pack maintenance, the market offers various solutions ranging from compact control boards to full-featured units with advanced color displays. This guide compares five available spot welding options, highlighting their unique control mechanisms, output capabilities, and interface features to help you determine which equipment aligns with your technical requirements and operational preferences for your upcoming battery projects.
Selecting a spot welder involves balancing power capacity with ease of use. Some units prioritize portability and cordless operation, while others offer extensive gear adjustments and high-amperage output for demanding tasks. Features like auto-triggering, foot pedal controls, and multi-language interfaces add layers of convenience that can streamline your workflow. By examining the specific technical specifications and user ratings provided for these models, you can identify which tool provides the necessary control for your specific battery materials. Understanding the distinctions between these welding machines allows for a more informed selection process when planning your next custom power pack or repair job.
1. SEESII 10KW Capacitive Battery Spot Welder: 12V Power Supply Available, Spot Welding Machine with Low Internal Resistance, Overvoltage Protection, for Battery Packs DIY & Repair | 12V Power Supply Available, Low Internal
This 10KW capacitive unit is designed for battery pack DIY and repair tasks. It functions using a 12V power supply and is engineered with low internal resistance to support the welding process. The unit incorporates overvoltage protection, which is a notable safety feature for those working with power supplies. Given its design, it is intended for users who have a 12V power source available and are looking for a dedicated machine for spot welding applications. The manufacturer emphasizes its capability for handling battery pack repairs, making it a functional choice for those who need a reliable, focused tool for consistent welding results in a workshop or garage setting.
Best for: DIYers with an existing 12V power supply.
Check on AmazonHighlights
- 10KW output capacity
- Low internal resistance design
- Integrated overvoltage protection
- Optimized for battery pack repair
Keep in mind
- Requires an external 12V power source
- May lack the advanced digital interfaces found on more expensive models
2. Spot Welder Control Board, High Output Battery Spot Welder, Battery Welder PCB Circuit Board 6 Gear Adjustable, Spot Welder for Lithium Batteries, Control Board Kit Spot Welder 100-900A (02B-DLB)
The 02B-DLB is a control board kit designed for those who prefer to assemble or integrate their own spot welder. This PCB circuit board offers 6 adjustable gear settings, allowing for some flexibility in output depending on the battery material being used. It is rated for a high output range of 100-900A, which is suitable for various lithium battery applications. Because this is a bare control board kit, it is best suited for users who have the technical knowledge to integrate it into a housing or existing setup. It provides a foundational electronic solution for DIYers who want to build a custom welding machine rather than purchasing a pre-assembled unit.
Best for: Custom DIY builds and integrated system projects.
Check on AmazonHighlights
- 6 adjustable gear levels
- High output capacity up to 900A
- Compact PCB design
- Tailored for lithium battery work
Keep in mind
- Requires additional assembly or housing
- Limited to 6 preset gear levels

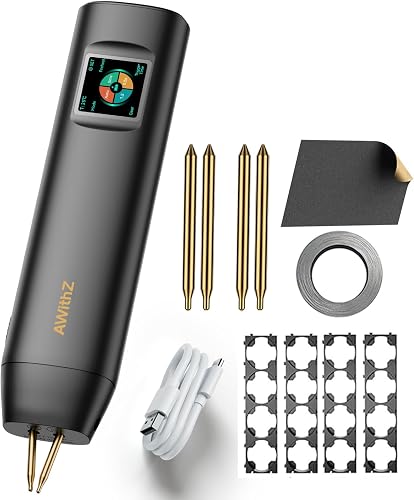

3. Battery Spot Welder with 3700W MAX 1.5" LCD Display | 1000A Double-ended 99 Adjustable Levels, Auto/Manual Modes, 7-Language UI, Portable Spot Welder for Nickle
This portable welder offers a robust 3700W maximum output and features 99 adjustable levels, providing granular control over the welding process. It is equipped with a 1.5-inch LCD display and a 7-language user interface, making it highly accessible for diverse users. The unit supports both auto and manual modes, offering versatility for different skill levels and project requirements. With a 1000A capacity, it is designed for welding nickel strips efficiently. The portable form factor ensures it can be moved easily around a workspace, which is beneficial for those who do not have a dedicated, stationary welding station. It is a well-rounded option for frequent battery builders.
Best for: Users needing high precision and portable operation.
Check on AmazonHighlights
- 99 adjustable power levels
- 1.5-inch LCD display
- Auto and manual welding modes
- Multi-language interface support
Keep in mind
- Display size is smaller than some premium competitors
- 3700W limit may be less than specialized industrial-grade units
4. SEESII 10KW Battery Spot Welder: Cordless Spot Welding Equipment, Color LCD Display, 25 Adjustable Gears, Auto/Foot Pedal Control, for Battery Packs DIY & Repair | Cordless Welding Equipment, Color LCD Display, Auto/Foot
This 10KW cordless spot welder is designed for mobility, allowing for usage in areas without immediate access to wall outlets. It features a color LCD display for monitoring settings and offers 25 adjustable gears to match the thickness of the nickel strips being welded. The machine supports both automatic operation and foot pedal control, providing flexibility in how the user manages the welding cycle. This unit is well-suited for battery pack DIY and repair, particularly for users who value a clutter-free workspace and the freedom to move the equipment. The combination of cordless power and adjustable settings makes it a versatile tool for various battery assembly tasks.
Best for: Mobile DIYers who prefer a cordless workspace.
Check on AmazonHighlights
- Cordless operation for portability
- 25 adjustable gear settings
- Color LCD screen interface
- Includes foot pedal control option
Keep in mind
- Battery life for the unit itself may require monitoring
- Fewer gear settings than the 99-level alternatives
5. FNRSI SWM-20 Battery Spot Welder,1200A Double Pulse Battery Welder Machine | 2.4" TFT Color Screen with 10000+ Adjustable Levels, 5000mAh Battery, Detachable Copper Welding Pens for Battery DIY Assembly
The FNRSI SWM-20 is a high-performance battery welder featuring a 1200A double-pulse system. It stands out with a 2.4-inch TFT color screen and an extensive range of 10,000+ adjustable levels, offering extreme precision for complex battery assembly. The unit includes a 5000mAh battery, allowing for portable use, and comes with detachable copper welding pens for enhanced maneuverability. This model is engineered for those who require professional-grade control and clear visual feedback during the welding process. The detachable pens are a significant advantage for reaching tight spots within battery packs, and the internal battery capacity supports extended DIY sessions without constant recharging.
Best for: Professional-grade DIY and precision battery assembly.
Check on AmazonHighlights
- 10,000+ adjustable levels
- Large 2.4-inch TFT color screen
- Detachable copper welding pens
- Integrated 5000mAh battery
Keep in mind
- Higher complexity may require a learning curve
- Potentially higher price point due to advanced features
How to choose
Power Output and Adjustability
When selecting a spot welder for battery packs, precision is essential. Models like the FNRSI SWM-20 offer 10,000+ adjustable levels for fine-tuned control, while the 3700W max unit provides 99 levels. For simpler applications, the 6-gear adjustable PCB kit or the 25-gear SEESII model may suffice. Higher gear counts allow for better management of nickel strip thickness, ensuring a secure bond without damaging the battery cells. Consider the maximum output current, such as the 1200A capacity of the FNRSI or the 1000A capacity of the 3700W model, to ensure your equipment matches the demands of your specific battery repair or DIY assembly project.
Control Modes and Interface
User interface and control methods significantly impact the welding experience. Many modern units feature LCD or TFT color displays for monitoring settings, with the 3700W welder supporting a 7-language UI. Look for versatility in operation, such as the SEESII cordless model, which offers both automatic and foot pedal control. The inclusion of clear visual feedback on a screen helps maintain consistency across multiple welds. When choosing between an integrated control board kit and a standalone machine, prioritize units that clearly display current settings and gear levels, as these features reduce the likelihood of errors during delicate battery pack construction.
Portability and Power Supply
Your workspace setup dictates whether you need a cordless or a stationary unit. The SEESII 10KW cordless spot welder provides mobile convenience for various repair locations. Conversely, units like the FNRSI SWM-20 include an internal 5000mAh battery for cordless operation. If you prefer a stationary setup, the 12V-compatible SEESII 10KW welder or the PCB circuit board kits rely on external power sources. Ensure your chosen equipment matches your power availability. If you are working in areas without easy access to a wall outlet, prioritize models with high-capacity internal batteries or those compatible with 12V power supplies.
Welding Pen and Component Quality
The quality of the welding pens and the control board design determines the longevity and reliability of your welder. The FNRSI SWM-20 features detachable copper welding pens, which are essential for maintenance and easy replacement. For those building custom setups, the 02B-DLB PCB circuit board kit offers a modular approach to assembly. Low internal resistance is a critical specification for efficient energy transfer, as seen in the SEESII 10KW welder. Always check if the welding pens provided are designed for high-current applications, as this ensures the equipment can handle the stress of repetitive double-pulse or standard welding tasks.
Safety and Protection Features
Safety is paramount when working with high-current equipment and lithium battery packs. Look for units that explicitly mention protective features, such as the SEESII 10KW capacitive welder, which includes overvoltage protection to safeguard the device and the battery during the welding process. Since spot welding involves high heat and electrical discharge, selecting a model with robust circuitry is vital. While basic PCB kits offer a functional entry point, integrated machines often include more comprehensive safety protocols. Always prioritize equipment that lists specific protective measures to ensure your workshop remains safe during battery DIY assembly and repair tasks.
Frequently asked questions
What is the primary difference between a PCB kit and a standalone spot welder?
A PCB kit, such as the 02B-DLB 6-gear adjustable board, is a component-level solution that requires assembly and often integration with an external power source. It is designed for DIY enthusiasts who want to build their own custom welding setup. In contrast, standalone machines like the FNRSI SWM-20 or the 3700W LCD-equipped welder arrive as fully enclosed, ready-to-use devices with integrated screens, safety features, and specialized housing, offering a more streamlined and protected experience for battery pack repair.
Do I need a foot pedal for my battery spot welder?
A foot pedal is an optional control method that allows for hands-free operation, which can be useful when you need to stabilize battery cells with your hands while triggering the weld. Models like the SEESII 10KW cordless welder offer both auto and foot pedal control. If your project involves intricate or delicate positioning, a foot pedal can provide better control, though many users find the automatic trigger mode on modern welders sufficient for standard nickel strip applications.
How do adjustable gear levels affect the welding process?
Adjustable gear levels allow you to control the intensity and duration of the electrical pulse delivered to the nickel strip. Lower gears are typically used for thinner strips or smaller cells to prevent burn-through, while higher gears are necessary for thicker materials. With the FNRSI SWM-20 offering 10,000+ levels and the 3700W model offering 99, these settings help ensure a consistent, strong bond across different battery configurations without damaging the underlying cell structure during the DIY welding process.
Can I use these spot welders for different types of lithium batteries?
Yes, these spot welders are designed specifically for lithium battery pack assembly and repair. Whether you are using a portable unit like the FNRSI SWM-20 or a high-capacity 10KW SEESII unit, the goal is to weld nickel strips onto battery terminals. Because different cells have varying heat sensitivities, the ability to adjust the welding current—via gears or pulse settings—is critical for working safely with various lithium-ion or LiFePO4 battery formats commonly found in DIY projects.
Why is 'low internal resistance' important for a battery spot welder?
Low internal resistance is a vital feature for high-performance spot welders, such as the SEESII 10KW model. It ensures that the maximum amount of energy from the power supply is effectively transferred to the welding point rather than being lost as heat within the device itself. This efficiency results in cleaner, stronger welds and helps prevent the welding machine from overheating during extended use, which is essential when constructing large battery packs that require many individual spot welds.
Bottom line
For users prioritizing professional-grade control and ease of use, the FNRSI SWM-20 Battery Spot Welder stands out as the strongest fit. With its 1200A double-pulse capability, 2.4-inch TFT color screen, and an impressive 10,000+ adjustable levels, it offers the most granular precision available in this selection. The inclusion of a 5000mAh battery allows for portable operation, and the detachable copper welding pens simplify maintenance. While the 3700W model is a high-powered alternative for those needing 99 levels and a 7-language interface, the FNRSI’s combination of a massive adjustment range and built-in power makes it the most versatile choice for serious battery DIY assembly and complex repair tasks.
Deciding on the right spot welder depends primarily on your technical experience and project scope. If you are a beginner or a hobbyist looking for a simple, cost-effective entry point, the 02B-DLB 6-gear PCB kit is an appropriate choice. For those needing mobile flexibility, the SEESII 10KW cordless model or the FNRSI SWM-20 are superior options. Always evaluate whether your project requires the high-current output of a 3700W stationary unit or the convenience of a cordless, color-LCD-equipped device. Match your gear level requirements to the thickness of your nickel strips to ensure your workshop equipment provides the reliability needed for safe battery pack construction.
