Top-Rated Pulley Systems for DIY Lifting and Workshop Projects
Constructing a functional homemade pulley system requires reliable components that can handle specific tension and weight requirements. Whether you are setting up a clothesline, installing sun shades, or building a home gym, selecting the correct hardware is essential for safety and efficiency. This guide highlights a variety of pulley configurations, ranging from simple stainless steel blocks for light-duty organization to high-capacity mechanical hoist systems designed for heavy lifting. By understanding the differences between these kits—such as gear ratios, mounting styles, and included accessories like nylon rope or eye plates—you can effectively assemble a custom setup tailored to your specific workshop or garage needs.
When planning a DIY pulley build, consider both the physical constraints of your workspace and the intended load capacity. Projects involving heavy equipment or hunting gear require robust systems with higher lifting ratios, whereas smaller, wall-mounted pulleys are sufficient for cable management or light organization. The products featured below offer various features, including ball bearings for smooth operation and heavy-duty steel construction for durability. Assessing the available work load and rope compatibility will help ensure your assembly functions as intended. Review these options to find the hardware that matches your project requirements and mechanical goals.
1. M25 Stainless Steel Pulley System Kit,Pulley Block with Nylon Rope | 2 Pack M25 Heavy Duty Pulleys Wheel with Rope Cleat, Eye Pad Plate and Hooks for Sun Shade Sail, Clothesline | 2 Pack M25 Heavy Duty Pulleys Wheel with
This M25 stainless steel kit is designed as a versatile solution for light-duty applications. The package includes two heavy-duty pulleys, nylon rope, a rope cleat, and eye pad plates with hooks. Because it provides multiple mounting components, it is well-suited for users who need to anchor a system to a structure for tasks like hanging sun shade sails or organizing a clothesline. The stainless steel construction offers durability for exterior use, while the inclusion of a rope cleat allows for better tension control. This kit streamlines the process of building a custom pulley setup by providing the essential hardware needed for a two-point or multi-point configuration in one purchase.
Best for: Sun shade installation and clothesline organization.
Check on AmazonHighlights
- Includes two M25 stainless steel pulleys
- Comes with essential mounting hardware
- Includes rope cleat for tensioning
- Suitable for outdoor fabric applications
Keep in mind
- May not be suitable for heavy industrial lifting
- Load capacity is not explicitly stated for high-weight projects
2. Cable Pulley 32mm Wheel Wall Mount, Bearings Inside, Rope Pulley for Pulley System, 2Pack
This two-pack of 32mm wall-mount pulleys focuses on smooth operation through integrated internal bearings. Designed specifically for cable-based pulley systems, this hardware provides a stable point for rope or cable travel. The wall-mount design makes it a practical choice for DIYers building a home gym or a custom cable organization system. By utilizing bearings, these units aim to reduce friction, which can help prolong the life of the cable or rope used. The compact size of the 32mm wheel allows for installation in tighter spaces where larger blocks might be cumbersome. These pulleys provide a foundational component for those who need to guide cables securely along a wall or ceiling.
Best for: Custom home gym cable routing or wall-mounted cable management.
Check on AmazonHighlights
- Features internal bearings for smooth movement
- Compact 32mm wheel size
- Designed for secure wall mounting
- Sold as a two-pack for dual-point systems
Keep in mind
- Hardware for wall attachment may need to be sourced separately
- Does not include rope or cable in the package

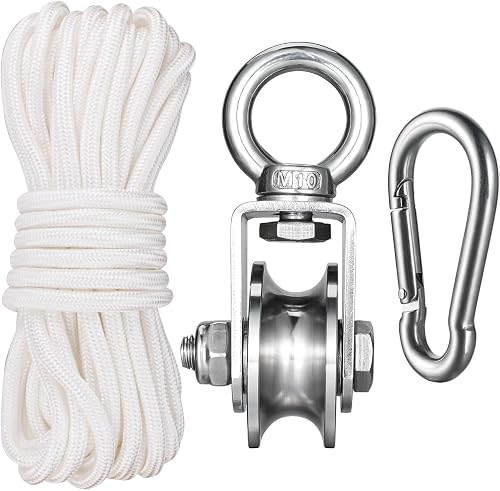

3. Heavy Duty Cable Single Pulley Block Wheel, with Ball Bearings for Wire Rope, with 32ft(10m) 0.31in(8mm) Nylon Rope and Clip, DIY Pulley System for Gym Equipment Workout, Winch, Lifting, 1Pack
This single pulley block assembly is engineered for versatility, shipping with 32 feet of 8mm nylon rope and a clip. The inclusion of ball bearings within the wheel is intended to facilitate efficient rope travel, making it a viable option for gym equipment workouts, light winching, or general lifting tasks. Because it comes as a complete kit, it reduces the need to hunt for compatible rope lengths or fasteners. The design balances portability with functional strength, serving users who need a quick, ready-to-use solution for lifting or cable-assisted exercises. The clip allows for rapid attachment and detachment, which is helpful if the pulley needs to be moved between different anchor points in a garage or workout space.
Best for: Home gym setups and light-duty DIY lifting tasks.
Check on AmazonHighlights
- Includes 32ft of 8mm nylon rope
- Equipped with ball bearings for smooth operation
- Includes a clip for fast installation
- Single block design for focused pulling
Keep in mind
- Limited to single-block mechanical advantage
- Rope length is fixed to 32 feet
4. Block and Tackle Pulley System, Upgraded 3-Wheel Rope Pulley Hoist, 5:1 Lifting Power, 1100LB Work Load with 55Ft of 1/4" Rope, Ultra-Compact Rope Hoist for Garage, Hunting, and Heavy Lifting
For tasks requiring significant mechanical advantage, this 3-wheel block and tackle system offers a 5:1 lifting power ratio. It is rated for an 1100 lb work load, making it a robust choice for heavy-duty applications like garage storage, hunting, or lifting heavy objects. The package includes 55 feet of 1/4-inch rope, ensuring users have enough length for high-ceiling or elevated lifting scenarios. Its ultra-compact design is intended to minimize space while maximizing the force multiplier, which is crucial for individual users attempting to lift heavy loads without additional assistance. The multi-wheel configuration distributes the load effectively, providing stability during the lifting process.
Best for: Heavy-duty garage storage and hunting equipment lifting.
Check on AmazonHighlights
- High 5:1 lifting power ratio
- Rated for 1100lb work load
- Includes 55ft of 1/4-inch rope
- 3-wheel design for mechanical advantage
Keep in mind
- Requires secure overhead structural mounting
- Higher complexity to set up than single-wheel systems
5. YATOINTO Rope Hoist Pulley System, 4400LB Pulley Block and Tackle, 8:1 Ratio Lifting Power 65ft, Heavy Duty Pulley Block for Hunting Lifting Heavy Objects Garage Warehouses Building
Designed for maximum lifting requirements, this rope hoist pulley system provides an 8:1 lifting power ratio with a 4400 lb capacity. This heavy-duty block and tackle is suited for industrial or large-scale DIY projects, such as warehouse lifting, building construction, or handling significant hunting harvests. The system includes 65 feet of rope, providing ample reach for various heights. By distributing force across an 8:1 ratio, the system significantly reduces the physical effort required to move heavy materials. The robust construction is aimed at high-demand environments where safety and load-bearing capacity are the primary concerns. It is an ideal piece of equipment for those who need to move substantial weight regularly.
Best for: Heavy warehouse lifting and large-scale construction projects.
Check on AmazonHighlights
- Massive 4400lb weight capacity
- Powerful 8:1 lifting ratio
- Includes 65ft of heavy-duty rope
- Designed for industrial-grade tasks
Keep in mind
- Overkill for simple home organization tasks
- Requires significant overhead clearance and anchor strength
How to choose
Lifting Capacity
When constructing a homemade pulley system, the maximum load capacity is the most critical safety factor. Products like the YATOINTO Rope Hoist offer a 4400LB capacity, suitable for heavy industrial or warehouse lifting. For smaller garage or hunting tasks, the 1100LB capacity of the Block and Tackle Pulley System provides significant lifting power. Always verify that the hardware, such as eye pad plates or wall mounts, can withstand the intended weight. Overloading a pulley system can lead to component failure, so choose a system rated well above your maximum expected load to ensure consistent safety during operation.
Mechanical Advantage
Mechanical advantage determines how much effort is required to lift an object. The YATOINTO system features an 8:1 ratio, while the Block and Tackle Pulley System offers a 5:1 ratio. Higher ratios allow for lifting heavier loads with less physical force. If your DIY project involves moving heavy equipment or logs, prioritizing a high-ratio block and tackle system is essential. Conversely, simple clothesline or sun shade setups do not require these ratios. Assess the weight of the objects you intend to move to determine if a multi-wheel block configuration is necessary for your specific application.
Included Components
A complete kit simplifies the process of making a pulley system. The M25 Stainless Steel Pulley System Kit includes a rope cleat, eye pad plate, and hooks, making it ideal for sun shade sails or clotheslines. The Heavy Duty Cable Single Pulley Block comes with a 32-foot nylon rope and clip, which is convenient for gym equipment or winch setups. If you prefer to source your own rope or mounting hardware, standalone units like the 32mm Cable Pulley Wall Mount provide flexibility. Always check the inventory list to ensure you have the necessary clips, hooks, and rope length before starting.
Material and Durability
Material selection impacts the longevity of your pulley system. Stainless steel options, such as the M25 Pulley System, offer resistance to the elements, which is beneficial for outdoor installations like clotheslines. For heavy-duty lifting, look for pulleys that feature internal ball bearings, as found in the 32mm Cable Pulley and the Heavy Duty Cable Single Pulley Block. These bearings reduce friction, allowing for smoother operation under load. Nylon rope is commonly included in these kits, providing a balance of strength and flexibility for various DIY projects. Ensure all hardware is rated for your specific environment to prevent corrosion or premature wear.
Mounting Configuration
The way a pulley attaches to a surface dictates the system's stability. Wall-mount pulleys, such as the 32mm Cable Pulley, provide a fixed point for wire rope configurations. Kits like the M25 system include eye pad plates for secure surface attachment. For hoisting tasks, block and tackle systems are designed to hang, often utilized in garages or hunting applications. Consider your mounting surface material, such as wood beams or metal joists, before selecting a pulley block. Proper installation of the mounting hardware is vital for the integrity of the entire system, especially when handling heavy loads or high-tension applications.
Frequently asked questions
What is the best pulley system for a DIY gym?
For a DIY gym setup, the Heavy Duty Cable Single Pulley Block is a strong candidate because it includes a 32ft nylon rope and a clip, designed specifically for workout equipment. Its internal ball bearings ensure smooth movement during cable exercises. If you need a more permanent wall-mounted solution, the 32mm Cable Pulley is also suitable for gym cable routing. Always ensure your mounting surface can support the combined weight of the pulley, cable, and any attached weights.
Can I use these pulleys for heavy-duty lifting?
Yes, but you must select the appropriate model. The YATOINTO Rope Hoist Pulley System is built for heavy-duty tasks with a 4400LB capacity and an 8:1 ratio. The Block and Tackle Pulley System is also designed for heavy lifting, handling up to 1100LB. Never exceed the stated work load capacity of any pulley block, as this could cause equipment failure. Always inspect the rope and hooks for signs of wear before attempting to lift heavy objects.
What components do I need for a clothesline pulley?
For a clothesline or sun shade sail, the M25 Stainless Steel Pulley System Kit is a comprehensive choice. It includes the pulley blocks, nylon rope, rope cleats, eye pad plates, and hooks. This kit provides the essential hardware to create a functional tensioning system. Because these components are made of stainless steel, they are well-suited for outdoor use. Simply ensure you have the correct screws or anchors to mount the eye plates securely to your chosen structure.
How does a 5:1 ratio help with lifting?
A 5:1 lifting power ratio means that the pulley system multiplies your input force by five. This allows you to lift significantly heavier objects with much less physical effort. For example, the Block and Tackle Pulley System uses this ratio to handle loads up to 1100LB. When building a homemade pulley system for heavy items, choosing a higher ratio reduces the strain on the user, making lifting operations safer and more manageable for individual operators.
Are these pulleys compatible with wire rope?
Compatibility depends on the specific product. The Heavy Duty Cable Single Pulley Block is explicitly designed for use with wire rope, featuring ball bearings to facilitate smooth movement. Other systems, such as the M25 Stainless Steel Pulley System or the Block and Tackle Pulley System, are typically paired with the nylon rope included in their respective kits. Always verify the groove size and material compatibility of the pulley wheel before attempting to use it with wire rope to prevent damage.
Bottom line
For users prioritizing raw lifting power and capacity, the YATOINTO Rope Hoist Pulley System is the strongest choice, offering an 8:1 mechanical advantage and a 4400LB load capacity for heavy-duty garage or warehouse projects. If your needs involve moderate heavy lifting, such as hunting or garage organization, the Block and Tackle Pulley System provides a reliable 1100LB capacity with a 5:1 ratio. For lighter, versatile applications like clotheslines or sun shades, the M25 Stainless Steel Pulley System Kit offers the best value by including all necessary mounting hardware and rope. Finally, for custom gym or winch setups, the Heavy Duty Cable Single Pulley Block and the 32mm Wall Mount Pulley offer smooth bearing-assisted operation.
Deciding on the right system requires balancing load requirements against the intended use. First, calculate the maximum weight of the items you plan to lift; if it exceeds 1000LB, opt for the YATOINTO system. Second, determine if you need a fixed wall-mount setup or a hanging block-and-tackle assembly. Third, evaluate if you need a complete kit with rope and mounting hardware, or if you prefer to purchase individual pulleys to customize your project. By matching the mechanical advantage ratio to your physical capabilities and the component materials to your environment, you can ensure a safe and efficient pulley system for your home workshop or garage.
